Fall Sense

[ The job ]

A disc in a care home ceiling that knows what happened below it, without ever making a picture.

Florence is its own company. Fall Sense is the first thing it sells.

Come and see it Build a quote

[ At a glance ]

Florence, a separate company. Fall Sense is its first device
Brand
Ceiling-mounted edge AI unit for residential aged care
Type
Inside the building, one per room, above the bed and the bathroom door
Where
Falls, time out of bed, time in the bathroom, nobody in for hours
Sees
Enclosure, electronics, firmware, models, the app behind it
We do
Planning, design, fabrication, implementation, maintenance
Scope
In design
Status

The brief

A resident goes down at 2 am. The call button is on the wall. Nobody finds out until the round.

The brief: know the minute it happened, without a camera.

Planning

A camera in a bedroom is something families are right to refuse.

So the unit reports the event, never a picture. Nothing to leak, nothing to watch, nothing to object to on a tour. And its own name: Florence.

Design

It started as a speaker. A dozen sketches, ten crossed out. A bezel no prouder than a downlight, a domed face, the thinnest ring of light.

A sketchbook spread of thumbnail studies for the unit: a dozen round recessed forms from below and in section, most crossed out, the light ring tried at different widths, a marker rendering of the glow — The first page. Ten out of twelve crossed outConcept sketches

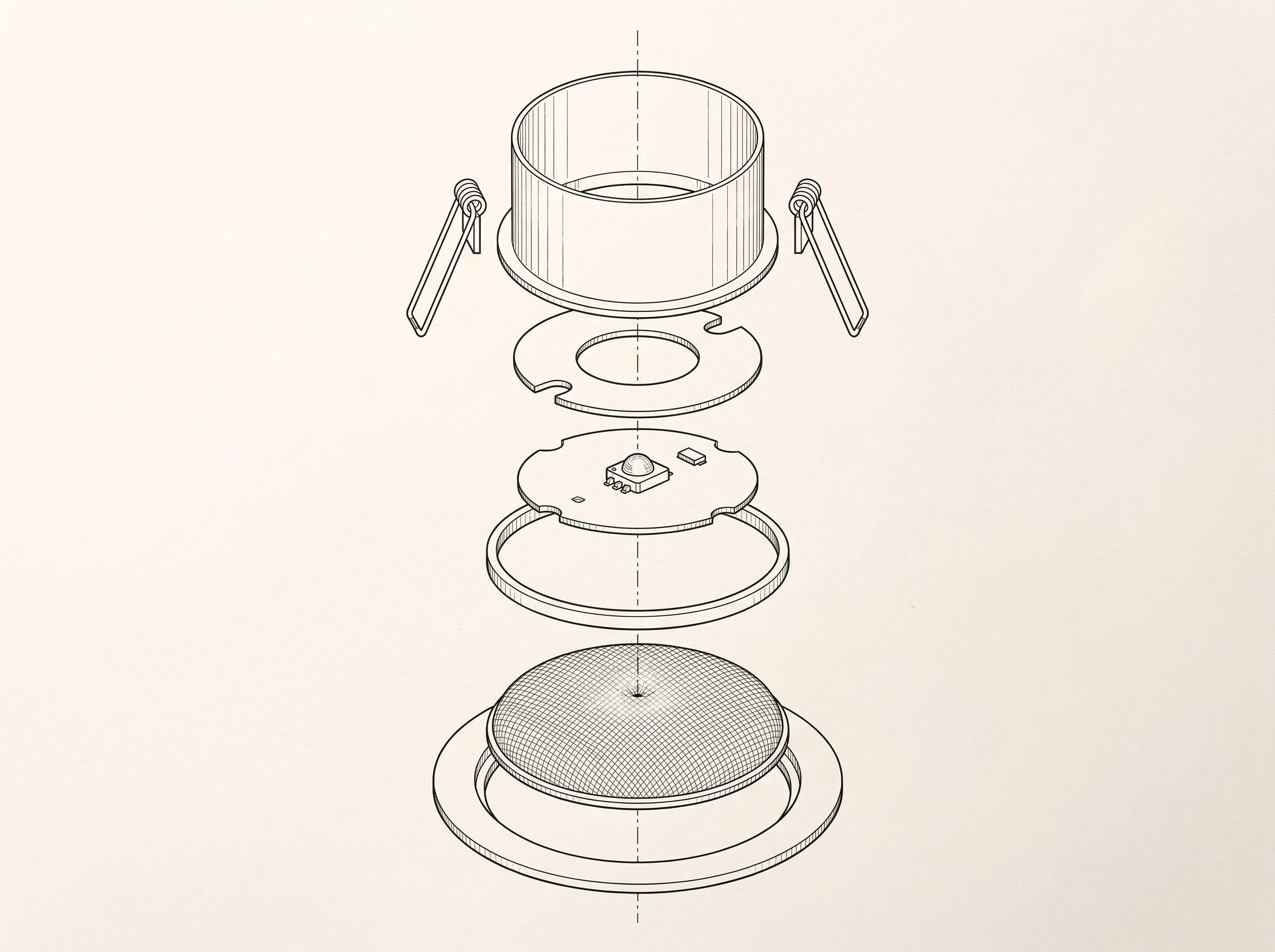

Exploded isometric drawing of the unit: bezel, mesh face, light ring diffuser, circuit board with sensor module, spreader plate, can and two spring clips separated along a centre axis — Exploded, seven partsDesign drawing

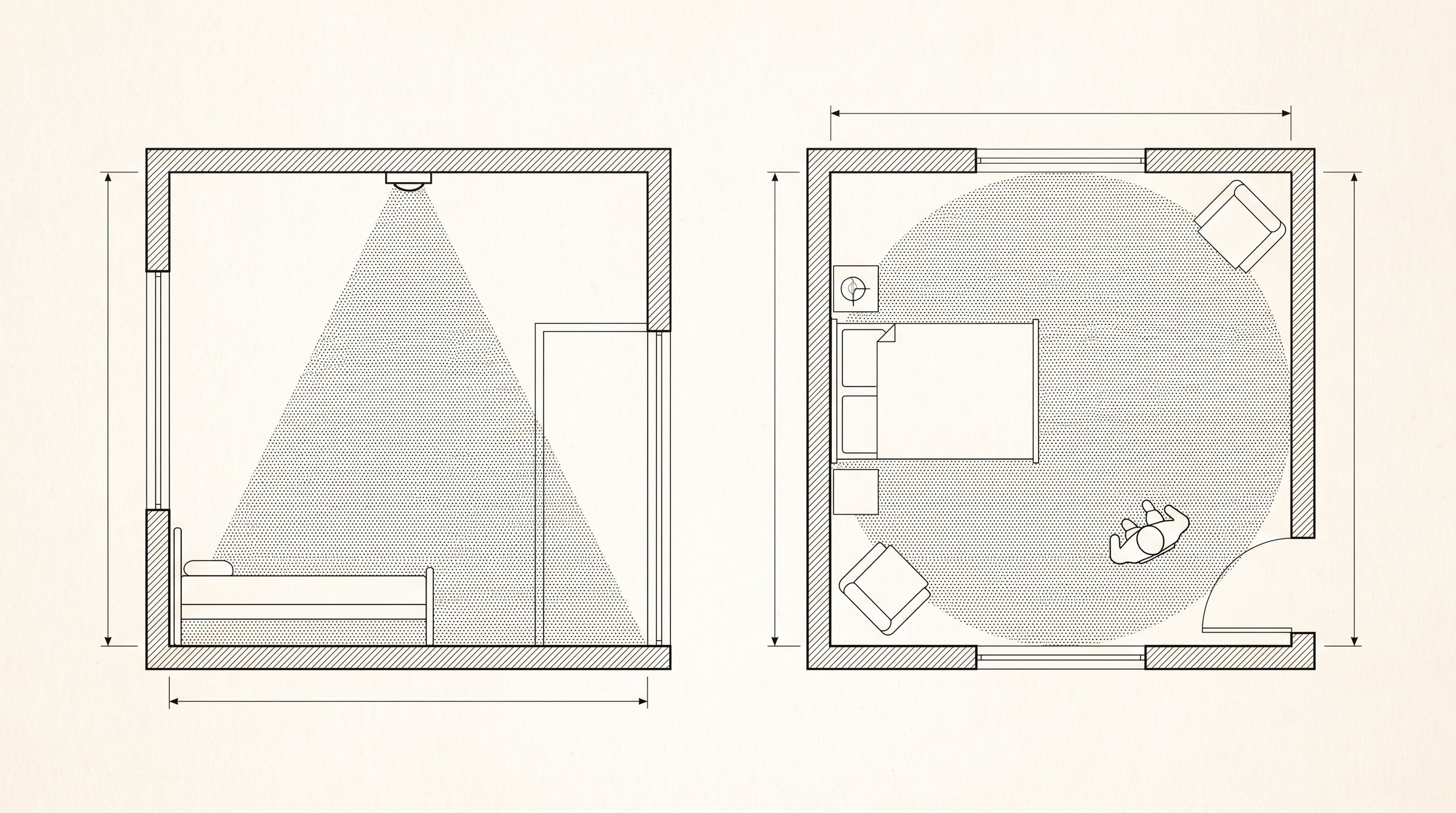

Section and plan of a bedroom showing the unit's field of view: a cone from the ceiling to the floor in section, a shaded circle over the bed, bedside, chair and bathroom door in plan — Coverage. Bed, floor beside it, bathroom doorDesign drawing

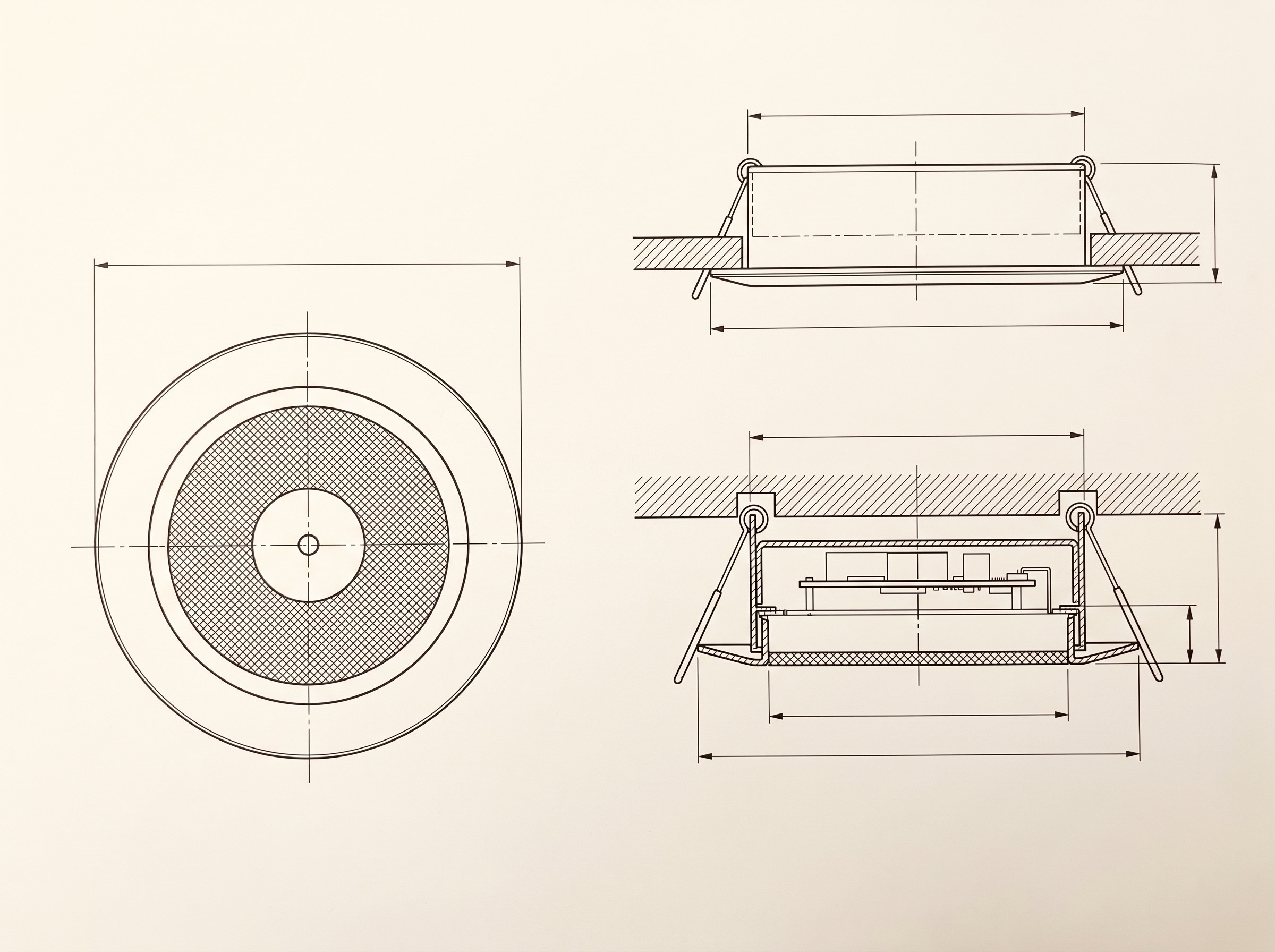

General arrangement drawing of the recessed unit: plan from below with the mesh face, side elevation, and a section through the plasterboard showing the can and the spring clips — General arrangement, recessedDesign drawing

The brand pass. Florence: geometric like Apple and Lautner, warm like Humane and Daylight. The mark is the unit from below, one ring, one opening, where the light is.

Florence, the brand the device is sold underInk, paper, stone, amber

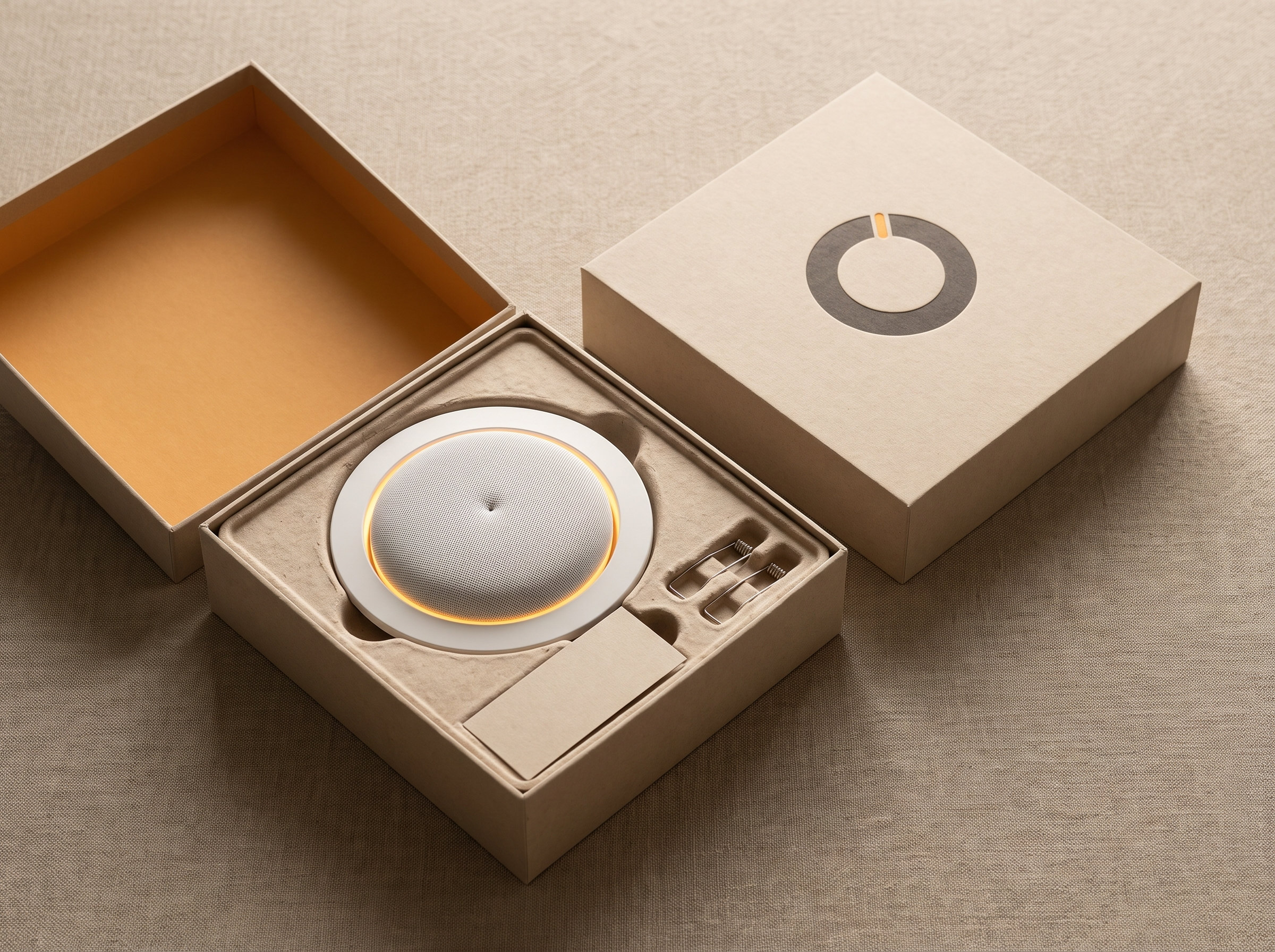

The unit in its box: unbleached card, a pulp tray, an amber lined lid, the ring mark debossed on the lid — The box. Card, pulp, amber, the mark debossedConcept visualisation

A care home bedroom in the manner of Frank Lloyd Wright: timber batten ceiling, stone wall, glass to the bush, the Fall Sense unit recessed small in the ceiling — In the room. It has to earn its place in a ceiling like thisConcept visualisation

Supply

Seven parts. Bezel, mesh, diffuser ring, board, spreader, can, two clips. The model runs on the board. Python and Postgres behind it.

Implementation

A 90 mm cutout and two clips. The same install as a downlight. Then the only thing that crosses the ceiling is a sentence.

The one rule. Events cross the ceiling, pictures do notSystem diagram

Maintenance

Firmware over the air. Every event logged. When a unit stops reporting, it tells us first.

The outcome

In design. The first install goes here.
