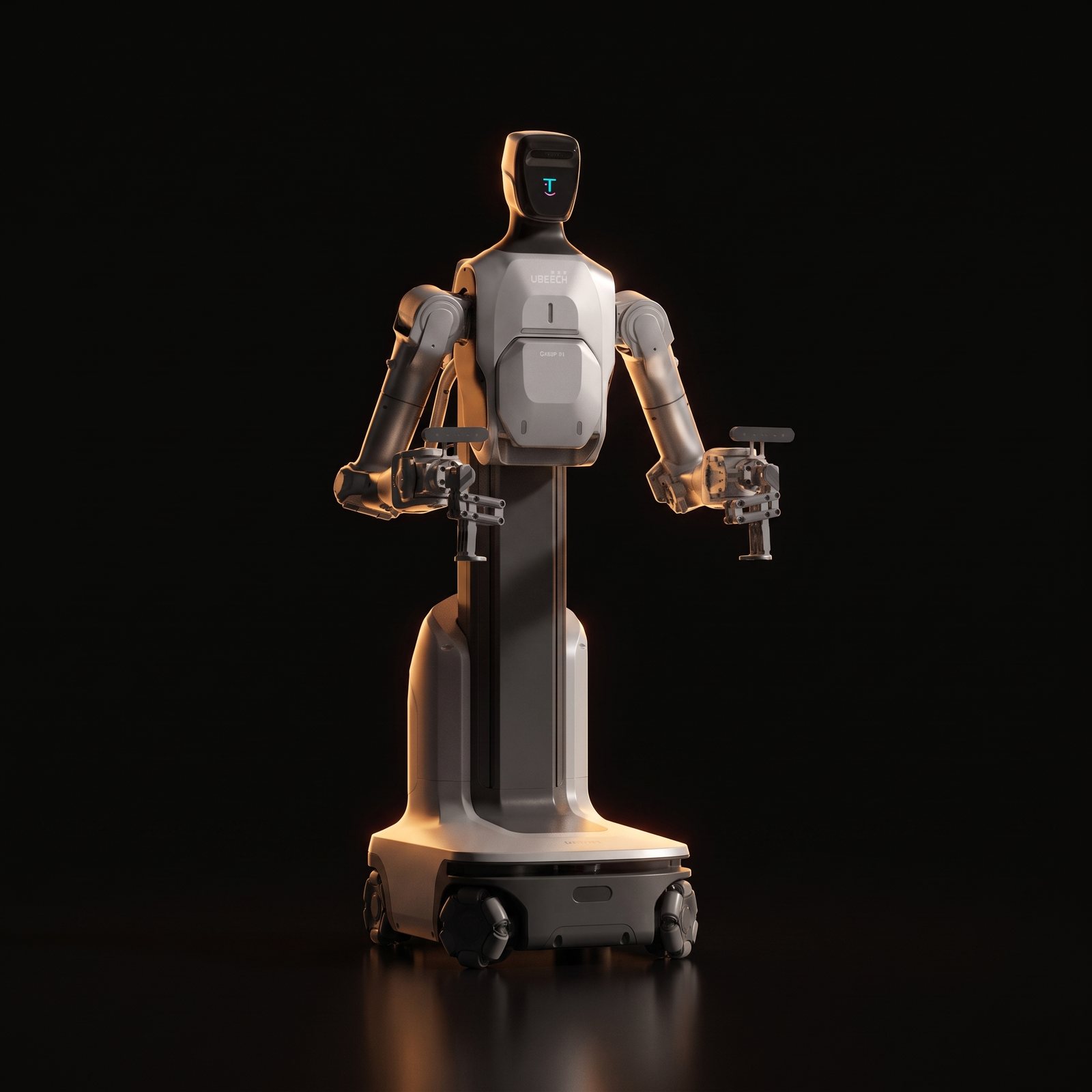

UBTECH Cruzr Y1
A mobile dual-arm robot for the warehouse jobs between manual labour and fixed automation.
Cruzr Y1 is for material handling, loading and unloading, depalletising and sorting in factories and logistics. Mobile navigation, two 7-DOF arms and a vertical lift, so one platform covers transport, loading and sorting instead of a cell for each.
- Two 7-DOF arms
750 mm reach each
- 10 kg arm payload
Force control on every joint
- 0 to 1800 mm lift
850 mm vertical range
- Laser SLAM and VSLAM
Lidar, RGBD, ToF, bumpers
- 1.5 m/s
Omnidirectional base
- ±20 mm positioning
±2° heading
- Swappable battery
Automatic charging too
- 650 × 550 × 1700 mm
90 kg plus
What it does
- Dual-arm handling
Two 7-DOF arms, 750 mm reach, force control. Coordinated reach and controlled grasping for bins, cartons and pick-and-place.
- Lift range
Vertical lift with an 850 mm range and a 0 to 1800 mm working height, plus a waist tray, so one robot covers floor pickup to machine-side loading.
- Navigation and autonomy
Laser SLAM and VSLAM, lidar, RGBD and ToF, layered obstacle avoidance, automatic charging and a swappable battery for multi-shift work.
- Warehouse material handling
Cartons, bins and containers on routes too variable for conveyors. Published envelope up to 650 × 450 × 400 mm.
- Manufacturing loading and depalletising
Approaching stations, working at several heights, moving between adjacent tasks.
- Sorting
Hard packs, soft packs and file-style items where item classes stay stable and routes change through the day.
- Flexible automation
One mobile handling robot across several work areas instead of separate fixed cells.
Add these to complete the job
Unitree G1
A compact humanoid for research, development and the kind of demo people remember.Quoted to order
Custom automation
A pallet, a fry basket, a bar dispenser. Drawn against your floor plan, built in the workshop here, run on our floor before it ships.Scoped first
UBTECH Cruzr 1S
The reception robot. Greets, guides, plays your content and comes back to charge.Quoted to your floor
UBTECH CadeBot
The tray robot. Three trays, 40 kg, a 21.5-inch screen, and it finds its own way to the table.Quoted to your floor
Published specification
What is it for?
Material handling: loading, unloading, depalletising and sorting in warehouses and factories. Not reception.
What can it handle?
Box transport, carton handling, depalletising and sorting of hard packs, soft packs and documents. Fit depends on the workpiece, route, cycle and grip.
Does it navigate a warehouse on its own?
Yes: laser SLAM plus VSLAM, with lidar, cameras, RGBD, ToF and bumper safety.
How do you assess fit?
Task type, payload, workpiece size, lift height, aisle width, charging, shift pattern, and whether a mobile robot really beats fixed automation for the process.
